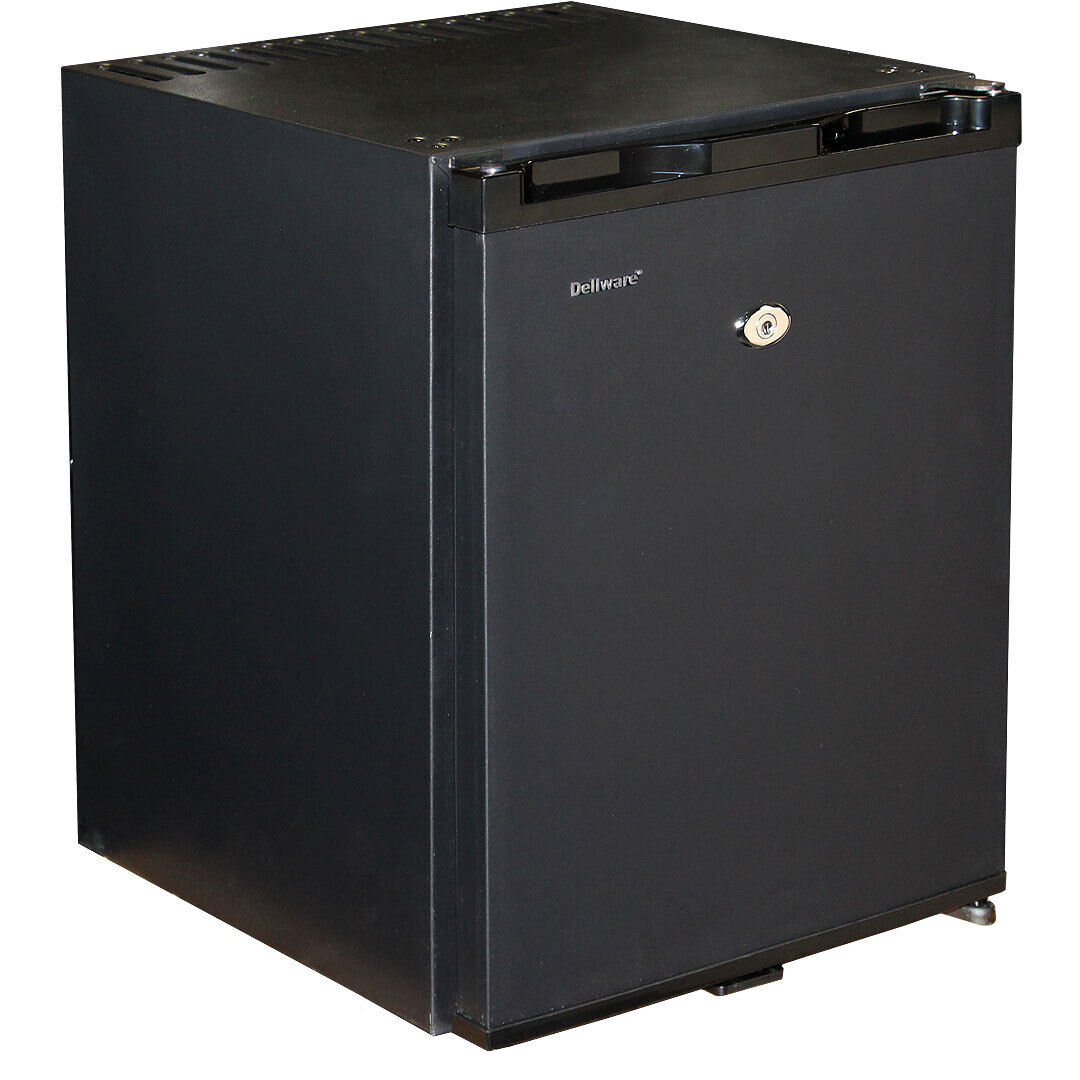

Dellcool Silent Mini Bar Fridge Under 400mm Deep, Great PC Gamer Fridge - DW-SC25

Silent mini bar fridge for hotel motel or accommodation with auto defrost and narrow depth to fit tight areas.
Also very popular for nursing homes and small room venues. Drinks fridge only as about 4°C to 5°C is best temperature.
NOTE: The room temperature MUST not get above 25°C for this type of mini fridge to cool properly, it DOES NOT have a compressor.
NOT suitable at all for alfresco or anywhere that room environment is not controlled.

DIMENSIONS:
EXTERNAL:- Width:350mm Depth:385mm Height:462mm
INTERNAL:- Width:270mm Depth:180mm Height:360mm

A built in fridge adds a touch of class
If you are building this fridge in, your cavity will need to be at least 390mm wide, 482mm high and 485mm deep.     (Includes Minimum Ventilation)

Minibar installation instructions
1. Minibar must stand on a level surface.
2. There should be 20mm clearance to the rear wall. No clearance required for the minibar top, side and bottom.
3. Air must be freely circulated through the cooling system.
4. Air must be preheated by any source of heat.
5. In case that grills are added to the air in or out, an opening of 200cm2 minimum must be assured.
6. A chimney is created in the back. Cold air enters through the furniture at the base, passes through the cooling system, and warm air rises and escapes.



Important information
The 200cm2 is calculated with L x W, ie; 20cmW x 10cmH = 200cm2
If cabinet is 'open' at front you need approximately 20mm minimum ventilation at sides, then rear exit point either above or 'over' the fridge. If unit has cabinet door in front of fridge door you need vent under unit, at rear of unit, including 100mm open under units and at top.
If you have another idea of method to install please contact us so we can advise, there are other wayts to install, this is just the most common way.

(DW-SC25)

SKU DW-SC25
Barcode # 8392797323556
Brand Dellcool
